2004 Ford F-150 Fuse Box Diagram
The 2004 Ford F-150 holds two fuse boxes: Passenger Compartment Fuse Panel and Auxiliary Relay Box.

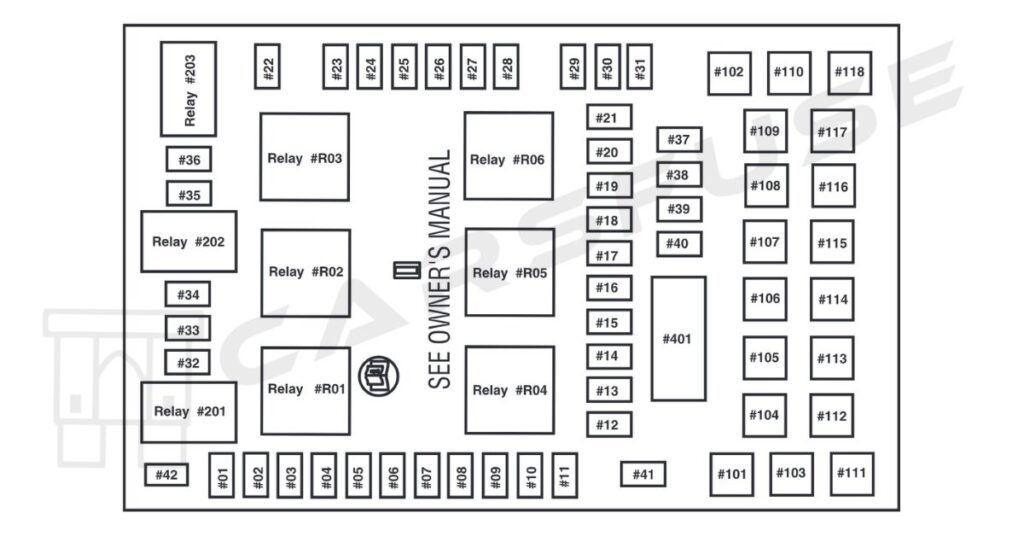

Passenger Compartment Fuse Panel
* Mini fuses/ ** Cartridge fuses.
| Fuse/RelayLocation | Fuse Amp Rating | Description |
| 1 | 10A* | Run/Accessory – Wipers, Instrument cluster |
| 2 | 20A* | Stop/Turn lamps, Speed control deactivate switch |
| 3 | 5A* | Power mirrors, Memory logic power, Memory seats, and pedals |
| 4 | 10A* | DVD battery power |
| 5 | 7.5A* | Keep alive memory for Powertrain Control Module (PCM) and climate control module |
| 6 | 15A* | Parklamps, BSM, Instrument panel illumination |
| 7 | 5A* | Radio (start signal) |
| 8 | 10A* | Heated mirrors, Switch indicator |
| 9 | — | Not used |
| 10 | 20A* | Trailer tow backup lamps relay (PCB1), Trailer tow park lamp relay (R201) |
| 11 | 10A* | A/C clutch, 4×4 solenoid |
| 12 | — | Not used |
| 13 | 10A* | Climate control module power |
| 14 | 10A* | Back-up lamp and DaytimeRunning Lamps (DRL) relay coil, A/C pressure switch, Brake-shift interlock solenoid, Heated PCV |
| 15 | 5A* | Overdrive cancel, Cluster, Brake-Shift Interlock (BSI) |
| 16 | 10A* | ABS module (Run/Start power) |
| 17 | 15A* | Fog lamp relay (R202) |
| 18 | 10A* | Run/Start feed – Flasher relay, Electrochromatic mirror, Heated seats, BSM, Compass, RSS (Reverse Sensing System) |
| 19 | 10A* | Restraints (Airbag module) |
| 20 | 15A* | PCM 4×4 power |
| 21 | 15A* | Cluster keep alive power |
| 22 | 10A* | Delayed accessory power for audio, power door lock switch, and moonroof switch illumination |
| 23 | 10A* | RH low beam headlamp |
| 24 | 15A* | Battery saver power for demand lamps |
| 25 | 10A* | LH low beam headlamp |
| 26 | 20A* | Horn relay (PCB3), Horn power |
| 27 | 5A* | Passenger Airbag Deactivation (PAD) warning lamp, Cluster airbag warning lamp, Cluster RUN/START power |
| 28 | 5A* | SecuriLock transceiver (PATS) |
| 29 | 15A* | PCM 4×4 power |
| 30 | — | Not used |
| 31 | 20A* | Radio power |
| 32 | 15A* | Vapor Management Valve (VMV), A/C clutch relay, Canister vent, Heated Exhaust Gas Oxygen(HEGO) sensors #11 and #21, CMCV, Mass Air Flow (MAF) sensor, VCT |
| 33 | 15A* | Shift solenoid, CMS #12 and #22 |
| 34 | 20A* | Fuel injectors and PCM power |
| 35 | 20A* | Instrument cluster high beam indicator, High beam headlamps |
| 36 | 10A* | Trailer tow right turn/stop lamps |
| 37 | 20A* | Rear power point |
| 38 | 25A* | Subwoofer power |
| 39 | 20A* | Instrument panel powerpoint |
| 40 | 20A* | Low beam headlamps, DRL |
| 41 | 20A* | Cigar lighter, Diagnostic connector power |
| 42 | 10A* | Trailer tow left turn/stop lamps |
| 101 | 30A** | Starter solenoid |
| 102 | 20A** | Ignition switch feed |
| 103 | 20A** | ABS valves |
| 104 | — | Not used |
| 105 | 30A** | Electric trailer brakes |
| 106 | 30A** | Trailer tow battery charge |
| 107 | 30A** | Power door locks (BSM) |
| 108 | 30A** | Passenger power seat |
| 109 | 30A** | Driver power seat, Adjustable pedals |
| 110 | — | Not used |
| 111 | 30A** | 4×4 relays |
| 112 | 40A** | ABS pump power |
| 113 | 30A** | Wipers and washer pump |
| 114 | 40A** | Heated backlite, Heated mirror power |
| 115 | — | Not used |
| 116 | 30A** | Blower motor |
| 117 | — | Not used |
| 118 | 30A** | Heated seats |
| 401 | 30A Circuit breaker | Power windows, Moonroof, Power-sliding backlite |
| R01 | Full ISO relay | Starter solenoid |
| R02 | Full ISO relay | Accessory delay |
| R03 | Full ISO relay | Hi-beam headlamps |
| R04 | Full ISO relay | Heated backlite |
| R05 | Full ISO relay | Trailer tow battery charge |
| R06 | Full ISO relay | Blower motor |
| R201 | Half ISO relay | Trailer tow park lamps |
| R202 | Half ISO relay | Fog lamps |
| R203 | Half ISO relay | PCM |

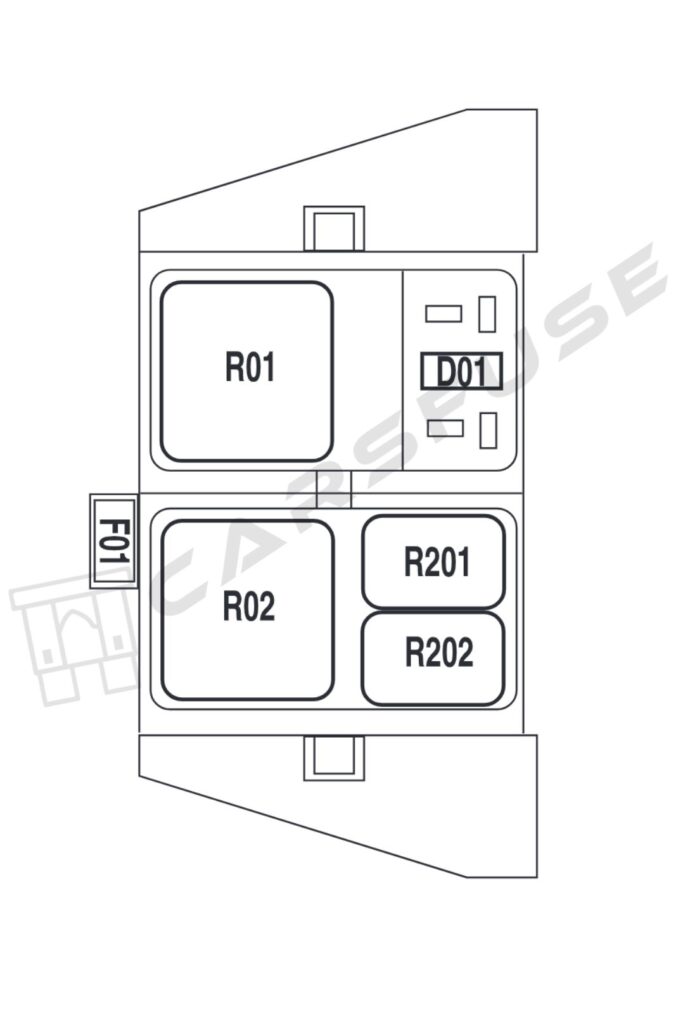

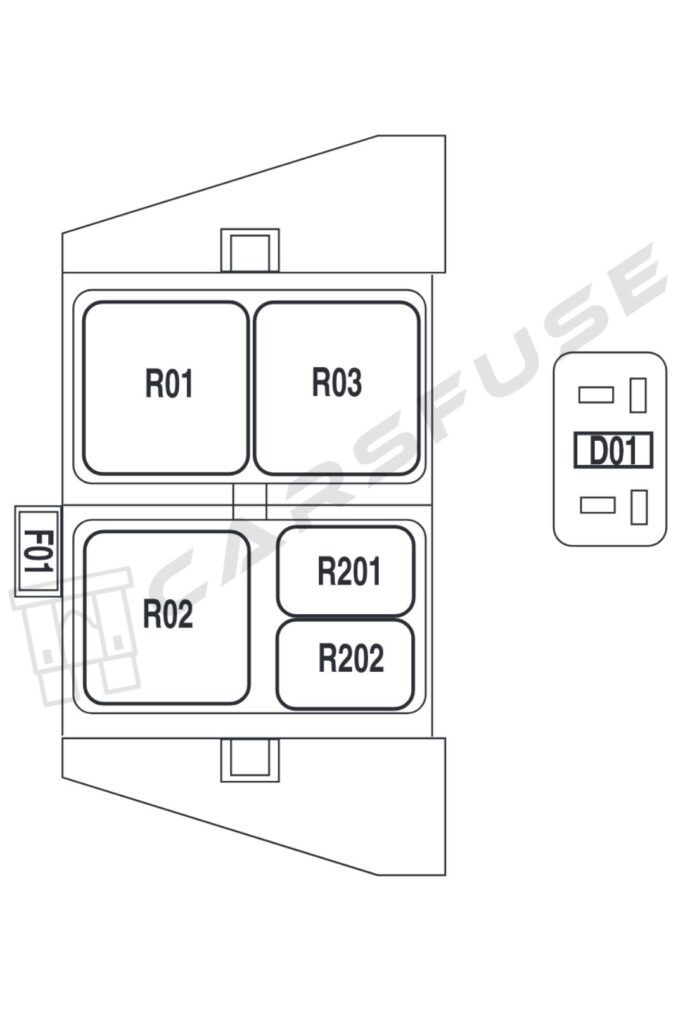

Auxiliary Relay Box
| Fuse/Relay location | Fuse amp rating | Description |
| F01 | 5A | Clockspring illumination |
| R01 | — | 4×4 CCW |
| R02 | — | 4×4 CW |
| R03 | — | Daytime Running Lamps (DRL) (if equipped, otherwise not used) |
| R201 | — | DRL |
| R202 | — | A/C clutch |
| D01 | — | A/C clutch diode |
2005 Ford F-150 Fuse Box Diagram
2005 F150 also contains two fuse box layouts: Passenger Compartment Fuse Panel and Auxiliary Relay Box.
Passenger Compartment Fuse Panel
* Mini fuses/ ** Cartridge fuses.
| Fuse/RelayLocation | Fuse AmpRating | Description |
| 1 | 10A* | Run/Accessory – Wipers, Instrument cluster, Audio for XL/STX |
| 2 | 20A* | Stop/Turn lamps, Brake on/off switch |
| 3 | 5A* | Power mirrors, Memory seats, and pedals |
| 4 | 10A* | DVD battery power, Power fold mirror |
| 5 | 7.5A* | Keep alive memory for Powertrain Control Module (PCM) and climate control module |
| 6 | 15A* | Parklamps, BSM, Instrument panel illumination |
| 7 | 5A* | Radio (start signal) |
| 8 | 10A* | Heated mirrors, Switch indicator |
| 9 | — | Not used |
| 10 | 20A* | Trailer tow back-up lamps relay(PCB1), Trailer tow park lamp relay(R201) |
| 11 | 10A* | A/C clutch, 4×4 solenoid |
| 12 | — | Not used |
| 13 | 10A* | Climate control module power, Flasher relay |
| 14 | 10A* | Back-up lamp and Daytime Running Lamps (DRL) relay coil, A/C pressure switch, Redundant speed control switch, Heated PCV (5.4L), Trailer tow back-up lamps relay coil, ABS, Reverse park aid, EC mirror |
| 15 | 5A* | Overdrive cancel, Cluster |
| 16 | 10A* | Brake-shift interlock solenoid |
| 17 | 15A* | Fog lamp relay (R202) |
| 18 | 10A* | Run/Start feed – Overhead power point, Electrochromatic mirror, Heated seats, BSM, Compass, RSS(Reverse Sensing System) |
| 19 | 10A* | Restraints (Airbag module) |
| 20 | 10A* | Battery feed for overhead powerpoint |
| 21 | 15A* | Cluster keep alive power |
| 22 | 10A* | Delayed accessory power for audio, power door lock switch, and moonroof switch illumination |
| 23 | 10A* | RH low beam headlamp |
| 24 | 15A* | Battery saver power for demand lamps |
| 25 | 10A* | LH low beam headlamp |
| 26 | 20A* | Horn relay (PCB3), Horn power |
| 27 | 5A* | Passenger Airbag Deactivation (PAD) warning lamp, Cluster airbag warning lamp, Cluster RUN /START power |
| 28 | 5A* | SecuriLock transceiver (PATS) |
| 29 | 15A* | PCM 4×4 power |
| 30 | 15A* | PCM 4×4 power |
| 31 | 20A* | Radio power |
| 32 | 15A* | Vapor Management Valve (VMV), A/C clutch relay, Canister vent, Heated Exhaust Gas Oxygen (HEGO) sensors#11 and #21, CMCV, Mass Air Flow(MAF) sensor, VCT, Heated PositiveCrankcase Ventilation (PCV) valve (4.2L engine), CID sensor (4.2L engine) |
| 33 | 15A* | Shift solenoid, CMS #12 and #22,4.6L/4.2L EGR |
| 34 | 20A* | Fuel injectors and PCM power, Intake Manifold Runner Control (4.2L engine) |
| 35 | 20A* | Instrument cluster high beam indicator, High beam headlamps |
| 36 | 10A* | Trailer tow right turn/stop lamps |
| 37 | 20A* | Rear power point |
| 38 | 25A* | Subwoofer power |
| 39 | 20A* | Instrument panel powerpoint |
| 40 | 20A* | Low beam headlamps, DRL |
| 41 | 20A* | Cigar lighter, Diagnostic connector power |
| 42 | 10A* | Trailer tow left turn/stop lamps |
| 101 | 30A** | Starter solenoid |
| 102 | 20A** | Ignition switch feed |
| 103 | 20A** | ABS valves |
| 104 | — | Not used |
| 105 | 30A** | Electric trailer brakes |
| 106 | 30A** | Trailer tow battery charge |
| 107 | 30A** | Power door locks (BSM) |
| 108 | 30A** | Passenger power seat |
| 109 | 30A** | Driver power seat, Adjustable pedals |
| 110 | — | Not used |
| 111 | 30A** | 4×4 relays |
| 112 | 40A** | ABS pump power |
| 113 | 30A** | Wipers and washer pump |
| 114 | 40A** | Heated backlite, Heated mirror power |
| 115 | — | Not used |
| 116 | 30A** | Blower motor |
| 117 | — | Not used |
| 118 | 30A** | Heated seats |
| 401 | 30A Circuit breaker | Power windows, Moonroof, Power-sliding backlite |
| R01 | Full ISO relay | Starter solenoid |
| R02 | Full ISO relay | Accessory delay |
| R03 | Full ISO relay | Hi-beam headlamps |
| R04 | Full ISO relay | Heated backlite |
| R05 | Full ISO relay | Trailer tow battery charge |
| R06 | Full ISO relay | Blower motor |
| R201 | Half ISO relay | Trailer tow park lamps |
| R202 | Half ISO relay | Fog lamps |
| R203 | Half ISO relay | PCM |

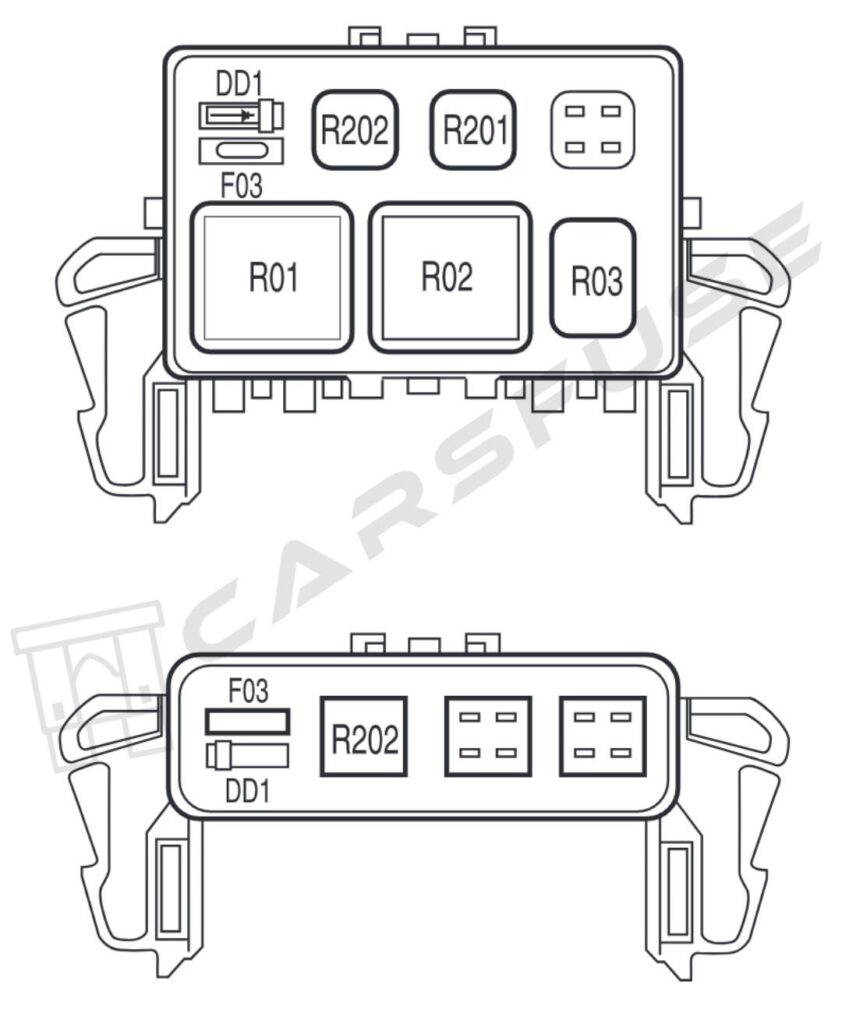

Auxiliary Relay Box
| Fuse/RelayLocation | Fuse Amp Rating | Description |
| F03 | 5A | Clockspring illumination |
| R01 | Full ISORelay | 4×4 CCW |
| R02 | Full ISORelay | 4×4 CW |
| R03 | 1⁄2 ISORelay | Daytime Running Lamps (DRL) high beam disable |
| R201 | Relay | DRL |
| R202 | Relay | A/C clutch |
| D01 | Diode | A/C clutch |
2006 Ford F-150 Fuse Box Diagram
You can also find two fuse box layouts in your 2006 F-150 and they are Passenger Compartment Fuse Panel and Auxiliary Relay Box.
Passenger Compartment Fuse Panel
* Mini fuses/ ** Cartridge fuses.
| Fuse/RelayLocation | Fuse AmpRating | Description |
| 1 | 10A* | Run/Accessory – Wipers, Instrument cluster, Audio for XL/STX |
| 2 | 20A* | Stop/Turn lamps, Brake on/off switch |
| 3 | 7.5A* | Power mirrors, Memory seats, and pedals |
| 4 | 10A* | DVD battery power, Power fold mirror |
| 5 | 7.5A* | Keep alive memory for Powertrain Control Module (PCM) and climate control module |
| 6 | 15A* | Parklamps, BSM, Instrument panel illumination |
| 7 | 5A* | Radio (start signal) |
| 8 | 10A* | Heated mirrors, Switch indicator |
| 9 | 20A* | Fuel pump relay, Fuel injectors, Intake manifold runner control(4.2L) |
| 10 | 20A* | Trailer tow back-up lamps relay(PCB1), Trailer tow park lamp relay(R201) |
| 11 | 10A* | A/C clutch, 4×4 solenoid |
| 12 | 5A* | PCM relay coil |
| 13 | 10A* | Climate control module power, Flasher relay |
| 14 | 10A* | Back-up lamp and Daytime Running Lamps (DRL) relay coil, A/C pressure switch, Redundant speed control switch, Heated PCV (5.4L), Trailer tow back-up lamps relay coil, ABS, Reverse park aid, EC mirror |
| 15 | 5A* | Overdrive cancel, Cluster |
| 16 | 10A* | Brake-shift interlock solenoid |
| 17 | 15A* | Fog lamp relay (R202) |
| 18 | 10A* | Run/Start feed – Overhead power point, Electrochromatic mirror, Heated seats, BSM, Compass, RSS(Reverse Sensing System) |
| 19 | 10A* | Restraints (Airbag module) |
| 20 | 10A* | Battery feed for overhead powerpoint |
| 21 | 15A* | Cluster keep alive power |
| 22 | 10A* | Delayed accessory power for audio, power door lock switch, and moonroof switch illumination |
| 23 | 10A* | RH low beam headlamp |
| 24 | 15A* | Battery saver power for demand lamps |
| 25 | 10A* | LH low beam headlamp |
| 26 | 20A* | Horn relay (PCB3), Horn power |
| 27 | 5A* | Passenger Airbag Deactivation (PAD) warning lamp, Cluster air bag warning lamp, Cluster RUN /START power |
| 28 | 5A* | SecuriLock transceiver (PATS), PCMIGN monitor |
| 29 | 15A* | PCM 4×4 power |
| 30 | 15A* | PCM 4×4 power |
| 31 | 20A* | Radio power |
| 32 | 15A* | Vapor Management Valve (VMV), A/C clutch relay, Canister vent, Heated Exhaust Gas Oxygen (HEGO) sensors #11 and #21, CMCV, Mass Air Flow (MAF) sensor, VCT, HeatedPositive Crankcase Ventilation (PCV) valve (4.2L engine), CID sensor (4.2L engine), 4.6L/4.2L EGR |
| 33 | 15A* | Shift solenoid, CMS #12 and #22,Ignition coils |
| 34 | 15A* | PCM power |
| 35 | 20A* | Instrument cluster high beam indicator, High beam headlamps |
| 36 | 10A* | Trailer tow right turn/stop lamps |
| 37 | 20A* | Rear power point |
| 38 | 25A* | Subwoofer power |
| 39 | 20A* | Instrument panel powerpoint |
| 40 | 20A* | Low beam headlamps, DRL |
| 41 | 20A* | Cigar lighter, Diagnostic connector power |
| 42 | 10A* | Trailer tow left turn/stop lamps |
| 101 | 30A** | Starter solenoid |
| 102 | 20A** | Ignition switch feed |
| 103 | 20A** | ABS valves |
| 104 | — | Not used |
| 105 | 30A** | Electric trailer brakes |
| 106 | 30A** | Trailer tow battery charge |
| 107 | 30A** | Power door locks (BSM) |
| 108 | 30A** | Passenger power seat |
| 109 | 30A** | Driver power seat, Adjustable pedals |
| 110 | — | Not used |
| 111 | 30A** | 4×4 relays |
| 112 | 40A** | ABS pump power |
| 113 | 30A** | Wipers and washer pump |
| 114 | 40A** | Heated backlite, Heated mirror power |
| 115 | — | Not used |
| 116 | 30A** | Blower motor |
| 117 | — | Not used |
| 118 | 30A** | Heated seats |
| 401 | 30A Circuit breaker | Power windows, Moonroof, Powe-sliding backlite |
| R01 | Full ISO relay | Starter solenoid |
| R02 | Full ISO relay | Accessory delay |
| R03 | Full ISO relay | Hi-beam headlamps |
| R04 | Full ISO relay | Heated backlite |
| R05 | Full ISO relay | Trailer tow battery charge |
| R06 | Full ISO relay | Blower motor |
| R201 | Half ISO relay | Trailer tow park lamps |
| R202 | Half ISO relay | Fog lamps |
| R203 | Half ISO relay | PCM |
Auxiliary Relay Box
| Fuse/RelayLocation | Fuse AmpRating | Description |
| F03 | 5A | Clockspring illumination |
| R01 | Full ISO Relay | 4×4 CCW |
| R02 | Full ISO Relay | 4×4 CW |
| R03 | 1⁄2 ISO Relay | Daytime Running Lamps (DRL) high beam disable |
| R201 | Relay | DRL |
| R202 | Relay | A/C clutch |
| D01 | Diode | A/C clutch |
2007 Ford F-150 Fuse Box Diagram
You will also find two fuse box layouts in the 2007 Ford F-150 series trucks. Passenger Compartment Fuse Panel and Auxiliary Relay box are the two accessible locations.
Passenger Compartment Fuse Panel
* Mini fuses/ ** Cartridge fuses.
| Fuse/RelayLocation | Fuse AmpRating | Description |
| 1 | 10A* | Run/Accessory – Wipers, Instrument cluster, Audio for XL/STX |
| 2 | 20A* | Stop/Turn lamps, Brake on/off switch, Hazard flashers |
| 3 | 7.5A* | Power mirrors, Memory seats, and pedals, Driver power seat |
| 4 | 10A* | DVD battery power, Power fold mirror |
| 5 | 7.5A* | Keep alive memory for Powertrain Control Module (PCM) and climate control module |
| 6 | 15A* | Parklamps, BSM, Instrument panel illumination |
| 7 | 5A* | Radio (start signal) |
| 8 | 10A* | Heated mirrors, Switch indicator |
| 9 | 20A* | Fuel pump relay, Fuel injectors, Intake manifold runner control(4.2L) |
| 10 | 20A* | Trailer tow backup lamps relay (PCB1), Trailer tow park lamp relay (R201) |
| 11 | 10A* | A/C clutch, 4×4 solenoid |
| 12 | 5A* | PCM relay coil |
| 13 | 10A* | Climate control module power, Flasher relay |
| 14 | 10A* | Back-up lamp and DaytimeRunning Lamps (DRL) relay coil, A/C pressure switch, Redundant speed control switch, Heated PCV (5.4L), Trailer tow back-up lamps relay coil, ABS, Reverse park aid, EC mirror, Navigation radio(reverse input) |
| 15 | 5A* | Overdrive cancel, Cluster, Traction control switch |
| 16 | 10A* | Brake-shift interlock solenoid |
| 17 | 15A* | Fog lamp relay (R202) |
| 18 | 10A* | Run/Start feed – Overhead power point, Electrochromatic mirror, Heated seats, BSM, Compass, RSS(Reverse Sensing System) |
| 19 | 10A* | Restraints (Airbag module), OCS |
| 20 | 10A* | Battery feed for overhead powerpoint |
| 21 | 15A* | Cluster keep alive power |
| 22 | 10A* | Delayed accessory power for audio, power door lock switch, and moon roof switch illumination |
| 23 | 10A* | RH low beam headlamp |
| 24 | 15A* | Battery saver power for demand lamps |
| 25 | 10A* | LH low beam headlamp |
| 26 | 20A* | Horn relay (PCB3), Horn power |
| 27 | 5A* | Passenger Airbag Deactivation(PAD) warning lamp, Cluster RUN/START power |
| 28 | 5A* | SecuriLock transceiver (PATS), PCM IGN monitor |
| 29 | 15A* | PCM 4×4 power |
| 30 | 15A* | PCM 4×4 power |
| 31 | 20A* | Radio power, Satellite radio module |
| 32 | 15A* | Vapor Management Valve (VMV), A/C clutch relay, Canister vent, Heated Exhaust Gas Oxygen(HEGO) sensors #11 and #21, CMCV, Mass Air Flow (MAF) sensor, VCT, Heated Positive Crankcase Ventilation (PCV) valve (4.2L engine), CID sensor (4.2L engine), 4.6L/4.2L EGR, Electronic fan clutch (4.6L/5.4L engines) |
| 33 | 15A* | Shift solenoid, CMS #12 and #22,Ignition coils |
| 34 | 15A* | PCM power |
| 35 | 20A* | Instrument cluster high beam indicator, High beam headlamps |
| 36 | 10A* | Trailer tow right turn/stop lamps |
| 37 | 20A* | Rear power point, Center console powerpoint |
| 38 | 25A* | Subwoofer power |
| 39 | — | Not used |
| 40 | 20A* | Low beam headlamps, DRL |
| 41 | — | Not used |
| 42 | 10A* | Trailer tow left turn/stop lamps |
| 101 | 30A** | Starter solenoid |
| 102 | 20A** | Ignition switch feed |
| 103 | 20A** | ABS valves |
| 104 | — | Not used |
| 105 | 30A** | Electric trailer brakes |
| 106 | 30A** | Trailer tow battery charge |
| 107 | 30A** | Power door locks (BSM) |
| 108 | 30A** | Passenger power seat |
| 109 | 30A** | Driver power seat, Adjustable pedals, Memory module (pedals, seat, mirror) |
| 110 | 20A** | Cigar lighter, Diagnostic connector power |
| 111 | 30A** | 4×4 relays |
| 112 | 40A** | ABS pump power |
| 113 | 30A** | Wipers and washer pump |
| 114 | 40A** | Heated backlite, Heated mirror power |
| 115 | 20A** | Not used (Spare) |
| 116 | 30A** | Blower motor |
| 117 | 20A** | Instrument panel powerpoint |
| 118 | 30A** | Heated seats |
| 401 | 30A Circuit breaker | Delayed accessory power: Power windows, Moon roof, Power-sliding backlite |
| R01 | Full ISO relay | Starter solenoid |
| R02 | Full ISO relay | Accessory delay |
| R03 | Full ISO relay | Hi-beam headlamps |
| R04 | Full ISO relay | Heated backlite |
| R05 | Full ISO relay | Trailer tow battery charge |
| R06 | Full ISO relay | Blower motor |
| R201 | Half ISO relay | Trailer tow park lamps |
| R202 | Half ISO relay | Fog lamps |
| R203 | Half ISO relay | PCM |

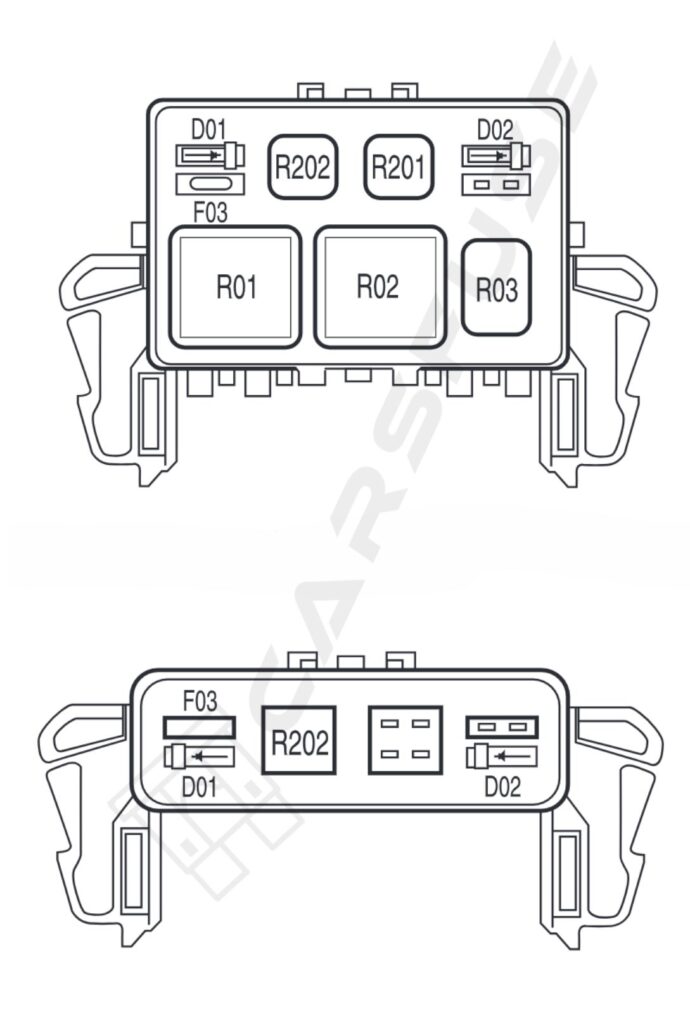

Auxiliary Relay Box
| Fuse/RelayLocation | Fuse AmpRating | Description |
| F03 | 5A | Clockspring illumination |
| R01 | Full ISORelay | 4×4 CCW |
| R02 | Full ISORelay | 4×4 CW |
| R03 | 1⁄2 ISORelay | Daytime Running Lamps (DRL) high beam disable |
| R201 | Relay | DRL |
| R202 | Relay | A/C clutch |
| D01 | Diode | A/C clutch |
| D02 | Diode | One Touch Integrated Start (OTIS) |
2008 Ford F-150 Fuse Box Diagram
Passenger compartment fuse panel/power distribution box and the Auxiliary Relay Box are the two fuse locations on the 2008 Ford F150.

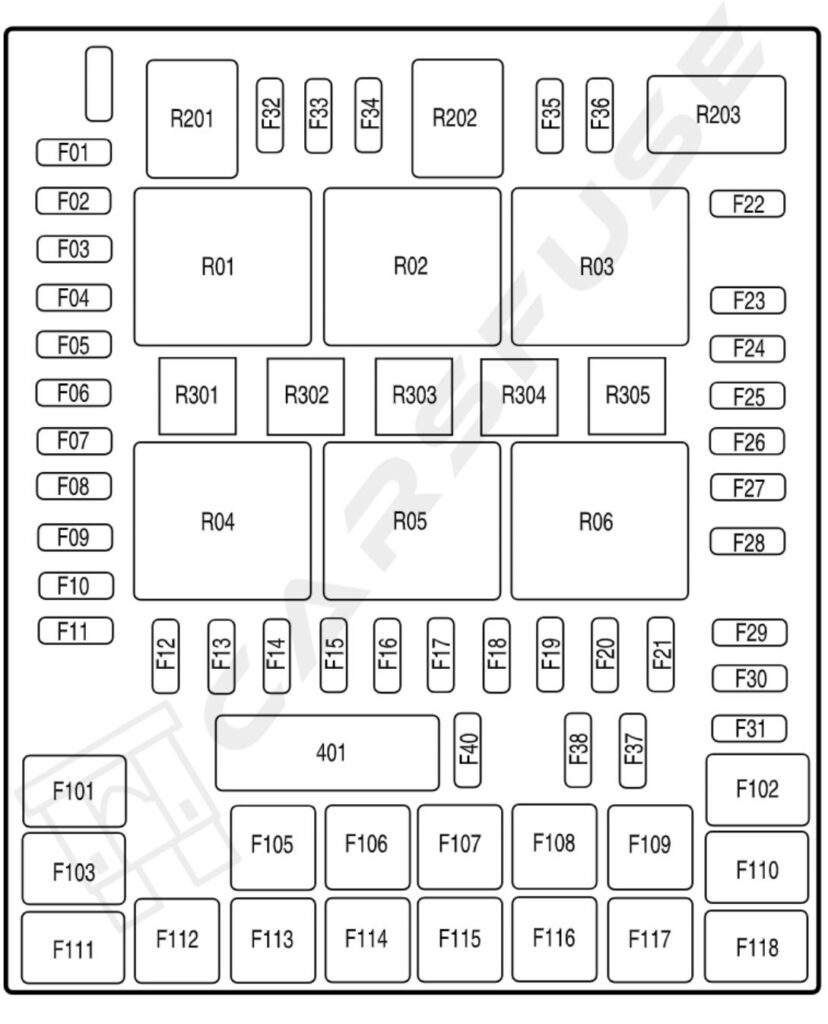

Passenger compartment fuse panel/power distribution box
| Fuse/Relay Location | Fuse AmpRating | Description |
| F01 | 10A* | Run/Accessory – Wipers, Instrument cluster, Audio for XL/STX |
| F02 | 20A* | Stop/Turn lamps, ABS, T/T electric brake module, PCM (BOO signal), turn signal mirrors, CHMSL |
| F03 | 7.5A* | Power mirrors, Memory seats, and pedals |
| F04 | 10A* | DVD battery power, Power fold mirror |
| F05 | 7.5A* | Keep alive memory for PowertrainControl Module (PCM), and Climate control module |
| F06 | 15A* | Parklamps, Body Security Module (BSM), Instrument panel illumination |
| F07 | 5A* | Radio (start signal) |
| F08 | 10A* | Heated mirrors, Switch indicator |
| F09 | 20A* | Fuel pump relay, Fuel injectors, Injector sense |
| F10 | 20A* | Trailer tow backup lamps relay, Trailer tow park lamp relay |
| F11 | 10A* | A/C clutch, 4×4 solenoid |
| F12 | 5A* | PCM relay coil |
| F13 | 10A* | Climate control module power, Flasher relay |
| F14 | 10A* | Back-up lamp and DaytimeRunning Lamps (DRL) relay coil, A/C pressure switch, Redundant speed control switch, Heated PCV(5.4L), ABS |
| F15 | 5A* | Overdrive cancel, Cluster |
| F16 | 10A* | Brake-shift interlock solenoid |
| F17 | 15A* | Fog lamp relay |
| F18 | 10A* | Electrochromatic mirror, Heated seats, BSM, Compass, RSS (Reverse Sensing System), Power rail |
| F19 | 10A* | Restraints (Airbag module) |
| F20 | 10A* | Power rail |
| F21 | 15A* | Cluster keep alive power |
| F22 | 10A* | Delayed accessory power for audio, power door lock switch,and moon roof switch illumination |
| F23 | 10A* | RH low beam headlamp |
| F24 | 15A* | Battery saver power for demand lamps, Flex fuel |
| F25 | 10A* | LH low beam headlamp |
| F26 | 20A* | Horn |
| F27 | 5A* | Passenger Airbag Deactivation (PAD) warning lamp, Cluster airbag warning lamp |
| F28 | 5A* | SecuriLock transceiver (PATS), PCM IGN monitor |
| F29 | 15A* | PCM 4×4 power |
| F30 | 15A* | PCM 4×4 power |
| F31 | 20A* | Radio power, Satellite radio module |
| F32 | 15A* | Vapor Management Valve (VMV),A/C clutch relay, Canister vent,Heated Exhaust Gas Oxygen(HEGO) sensors #11 and #21, CMCV, Mass Air Flow (MAF) sensor, Variable Cam Timing (VCT), Heated Positive Crankcase Ventilation (PCV) valve (4.2L engine), CID sensor (4.2L engine), 4.6L/4.2L EGR |
| F33 | 15A* | Shift solenoid, CMS #12 and #22,Ignition coils |
| F34 | 15A* | PCM power, IMRC (4.2L) |
| F35 | 20A* | Instrument cluster high beam indicator, High beam headlamps, DRL disable relay |
| F36 | 10A* | Trailer tow right turn/stop lamps |
| 37 | 20A* | Rear power point |
| 38 | 25A* | Subwoofer power |
| 39 | — | Not used |
| 40 | 20A* | Low beam headlamps, DRL |
| 41 | — | Not used |
| 42 | 10A* | Trailer tow left turn/stop lamps |
| F101 | 30A** | Starter solenoid |
| F102 | 20A** | Ignition switch feed |
| F103 | 20A** | ABS valves |
| F104 | — | Not used |
| F105 | 30A** | Electric trailer brakes |
| F106 | 30A** | Trailer tow battery charge |
| F107 | 30A** | Power door locks (BSM) |
| F108 | 30A** | Passenger power seat |
| F109 | 30A** | Driver power seat, Adjustable pedals, Memory module (pedals, seats) |
| F110 | 20A** | Cigar lighter, Diagnostic connector power |
| F111 | 30A** | 4×4 motor relays |
| F112 | 40A** | ABS pump power |
| F113 | 30A** | Wipers and washer pump |
| F114 | 40A** | Heated backlite, Heated mirror power |
| F115 | 20A** | Moonroof |
| F116 | 30A** | Blower motor |
| F117 | 20A** | Instrument panel powerpoint |
| F118 | 30A** | Heated seats |
| 401 | 30A Circuit breaker | Delayed accessory power: Power windows, Power sliding backlite |
| R01 | Full ISO relay | Starter solenoid |
| R02 | Full ISO relay | Accessory delay |
| R03 | Full ISO relay | Hi-beam headlamps |
| R04 | Full ISO relay | Heated backlite |
| R05 | Full ISO relay | Trailer tow battery charge |
| R06 | Full ISO relay | Blower motor |
| R201 | Half ISO relay | Trailer tow park lamps |
| R202 | Half ISO relay | Fog lamps |
| R203 | Half ISO relay | PCM |
| R301 | Printed circuit board | Trailer tow backup lamps |
| R302 | — | Not used |
| R303 | Printed circuit board | Fuel pump |
| R304 | Printed circuit board | Battery saver |
| R305 | Printed circuit board | Horn |
Auxiliary Relay Box
| Fuse/RelayLocation | Fuse AmpRating | Description |
|---|---|---|
| F03 | 5A | Clockspring illumination |
| R01 | Full ISO Relay | 4×4 CCW |
| R02 | Full ISO Relay | 4×4 CW |
| R03 | 1⁄2 ISO Relay | Daytime Running Lamps (DRL) high beam disable |
| R201 | Relay | DRL |
| R202 | Relay | A/C clutch |
| D01 | Diode | A/C clutch |
| D02 | Diode | One Touch Integrated Start (OTIS) |
Tip: Some high-amperage fuses may look slightly different depending on the model year and trim. Always verify the fuse type before replacing.
Fuse Replacement Tips / Safety Precautions
- Always disconnect the negative battery terminal before removing fuses.
- Never replace a blown fuse with a higher amp rating — this can damage wiring or cause a fire.
- Use a fuse puller or needle-nose pliers for safety.
- Label replaced fuses for future reference.
Frequently Asked Questions (FAQs)
Why does the tail light fuse blow in an F-150?
Common causes include:
Short circuit: Damaged or frayed wires touching metal can overload the fuse.
Bad or wrong bulb: A faulty or incompatible bulb can draw too much power.
Faulty light switch: A broken switch can cause current spikes.
Wrong fuse: Using a fuse with too low amperage can make it blow even when everything else is fine.
Why does the brake light fuse blow in an F-150?
Common reasons:
Short circuit: Damaged or frayed wires touching metal can overload the fuse.
Bad brake bulbs: Faulty or burned-out bulbs can draw too much power.
Faulty brake light switch: A broken switch can cause current spikes.
Wrong fuse: Using a fuse with too low amperage can make it blow.
Why does the air conditioning fuse blow in an F-150?
Common reasons:
Short circuit: Damaged or frayed wires in the AC system can overload the fuse.
Bad compressor: A failing or seized compressor can draw too much power.
Fan problems: A stuck or worn condenser or cabin fan can cause excess current.
Faulty AC relay: A bad relay can disrupt electrical flow and blow the fuse.
Wrong fuse: Using a fuse with lower amperage than recommended can make it blow.
Why does the air conditioning relay fail in an F-150?
Common reasons:
Short circuits: Damaged or frayed wires can overload and burn the relay.
Compressor or component problems: Failing AC parts can draw too much current and damage the relay.
Relay wear: Frequent use over time can wear out the internal contacts and coil.
