1992-1996 Ford F-150 Fuse Box Diagram

by

If you drive a Ford F-150 made between 1992 and 1996, you need to know one important thing: the fuse box changes almost every year.

Ford updated the wiring and added new features throughout this time, meaning your neighbor’s ’93 truck might have a different fuse panel than your ’96. If you use the wrong diagram, you’ll just waste time.

To save you the headache of guessing, this article gives you the exact Fuse Box Diagram for your specific model year, from 1992 to 1996. Find your year, find the right fuse, and get your truck fixed fast!

1992 Ford F-150 Fuse Box Diagram

There are two fuse box layout in the 1992 Ford F-150: one is the Instrument Fuse Panel and the other Engine Compartment Fuse Box.

Tip: Always disconnect the negative battery terminal before checking fuses to avoid short circuits.

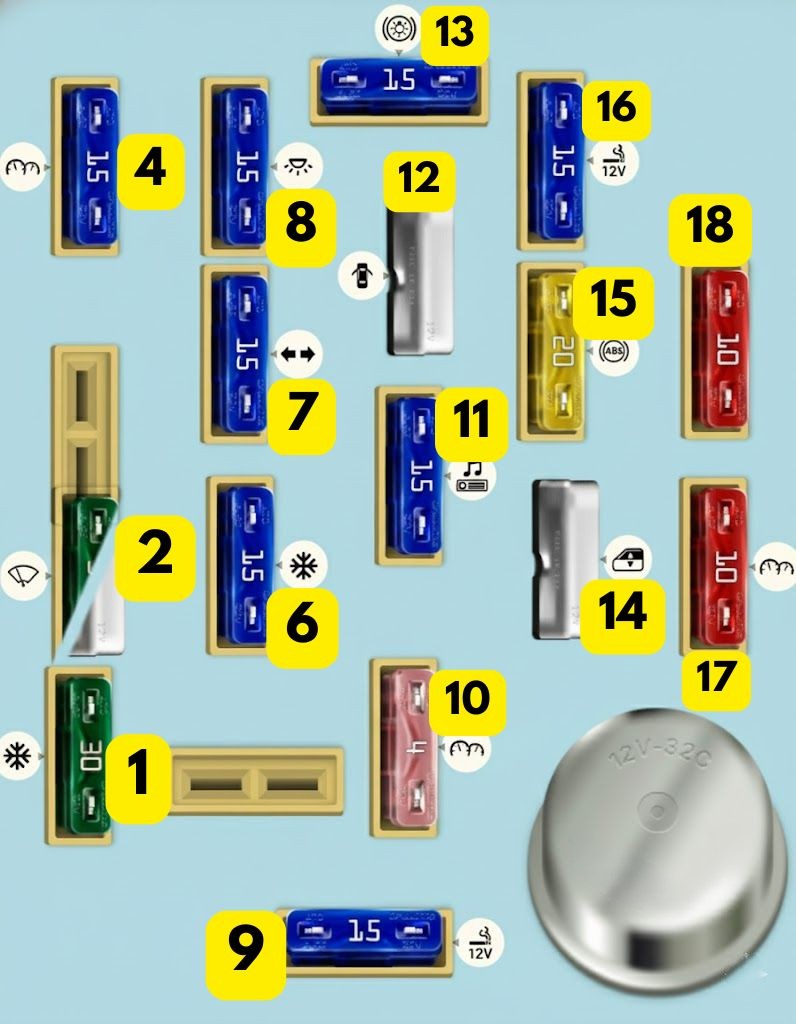

Instrument Fuse Panel

1992-ford-f-150-fuse-box-diagram-interior-fuse-panel
TypePositionDescription
Fuse ATO 30A1Air Conditioner/Heater
Fuse ATO 30A2Interval Wiper/Washer
Circuit breaker ATO2Interval Wiper/Washer
Fuse ATO 15A4Exterior Lamps, Trailer Marker Lamps Relay, Warning Chime, Instrument illumination
Fuse ATO 15A6Fuel Tank Selector [Diesel Only], Air Conditioner/Heater
Fuse ATO 15A7Turn Lamps, Rear Window Defrost [Bronco Only]
Fuse ATO 15A8Courtesy Lamps. Engine Compartment Lamp, Radio Memory, Power Mirrors, Clock Memory, Speedometer Memory, Warning Chime
Fuse ATO 15A9Power Point
Fuse ATO 4A10Instrument Illumination
Fuse ATO 15A11Radio, Radio Display Dim
Circuit breaker ATO12Power Door Lock, Power Tailgate Window [Bronco Only], Electronic Shift Control, Power Lumbar
Fuse ATO 15A13Spotlights, Stop and Hazard Lamps, Keep Alive Memory Power, Stop Sense (for Anti-lock Brakes, Speed Control, Electronic Engine Control), Brake Shift Interlock
Circuit breaker ATO14Power Windows, Tailgate Power Window: Instrument Panel Switch
Fuse ATO 20A15Anti-lock Brakes
Fuse ATO 15A16Cigar Lighter
Fuse ATO 10A17Overdrive Switch. Stop Lamp Switch, Warning Chime, Diesel Warning Lamps Display, Fuel Water Switch, Low Vacuum Warning Switch, Instrument Cluster, Electronic Shift Control
Fuse ATO 10A18Air Bag Restraint, Automatic Day/Night Mirror, Brake Shift Interlock, Speedometer, Electronic Shift Module 4WD, Electronic Shift Control, Overhead Console

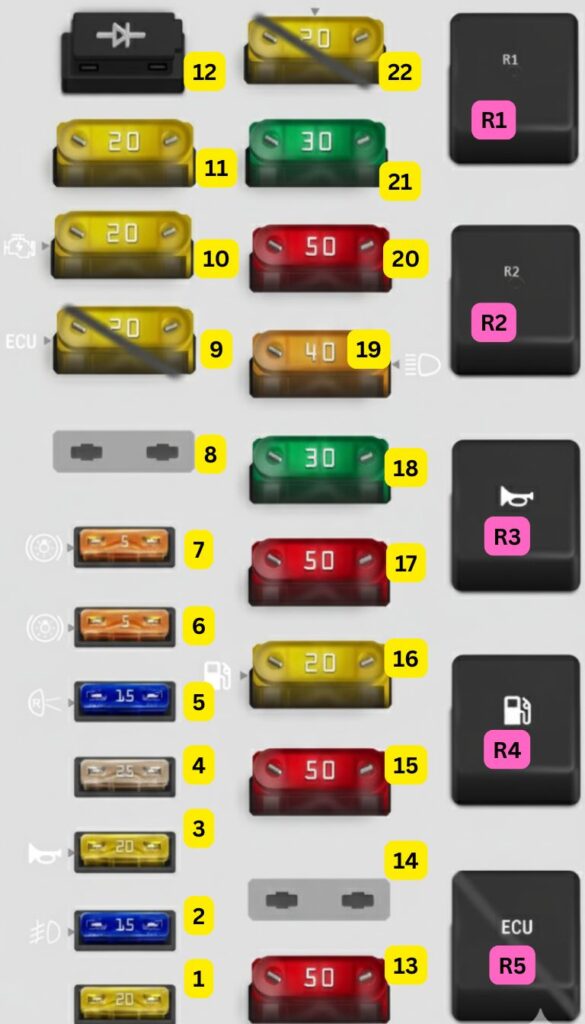

Engine Compartment Fuse Box

TypePositionDescription
Fuse ATO20A1Headlamp Flash-to-Pass, Dytime Running Light
Fuse ATO20A3Horn, Speed Control
Fuse ATO25A4Trailer Market Lamps Relay, Trailer Backup Lamps Relay
Fuse ATO15A5Backup Lamps, Daytime Runnin Light, Trailer Battery Charge Relay, Heater Exhaust Gas Oxygen (HEGO) Sensor, 4WABS [Gasoline]
Fuse ATO5A6Trailer Right Stop/Turn Lamps
Fuse ATO5A7Trailer Left Stop/Turn Lamps
Fuse MAXI20A9Electronic Transmission Control [Diesel]
Fuse MAXI20A9EEC/PCM Power Relay, Electronic Engine/Powertrain Control Module, Fuel Pump Relay [Gasoline]
Fuse MAXI20A10Starter Relay, Fuse (Passenger Compartment): “10”, “15”
Fuse MAXI20A11Fuel Plug Controller, Fuel Shutoff Solenoid, Engine Temperature Switch, Cold Timing Advance Solenoid, Cold Idle Solenoid
Diode ATO12Diode: TEGA Power
Fuse MAXI50A13Fuse (Passenger Compartment): “9”, “13”
Fuse MAXI30A14Rear Window Defrost
Fuse MAXI50A15Fuse (Passenger Compartment): “1”,”7″, Fuse (Engine Compartment): “5”
Fuse MAXI20A16Fuel Pump Relay [Gasoline]
Fuse MAXI50A17Alternator Charge Light, Fuse (Passenger Compartment): “6”, “11”, “14”, “17”, Fuse (Engine Compartment): “11”, “22”
Fuse MAXI30A18Trailer Battery Charge Relay
Fuse MAXI40A19Main Light Switch, Headlamps
Fuse MAXI50A20Fuse (Passenger Compartment): “4”, “8”, “12”, “16”
Fuse MAXI30A21Trailer Electronic Brake Control Unit
Fuse MAXI20A22Fuel Line Heater (Fuel Heater), Leece/Neville Alternator (Ambulance Package Generator), Electronic Transmission Control, Glow Plug Relay [Diesel],
Fuse MAXI20A22TFI Ignition Module, Ignition Coil, Distributor, EEC/PCM Power Relay [Gasoline]
RelayR1Trailer Battery Charge [Diesel], WAC [4.9L (Truck Six)]
RelayR2Trailer Marker Lamps or Dual Rear Wheel Running Lights
RelayR3Horn
RelayR4Trailer Backup Lamps [Diesel], Fuel Pump [Gasoline]
RelayR5TEGA/PCM Power or Electronic Transmission Control System [Diesel]
RelayR5Electronic Engine Control/Powertrain Control Module (EEC/PCM) Power [Gasoline]

1993 Ford F-150 Fuse Box Diagram

1993 Ford F-150 also includes two fuse layout: Interior Fuse Panel and Engine Compartment Fuse Box.

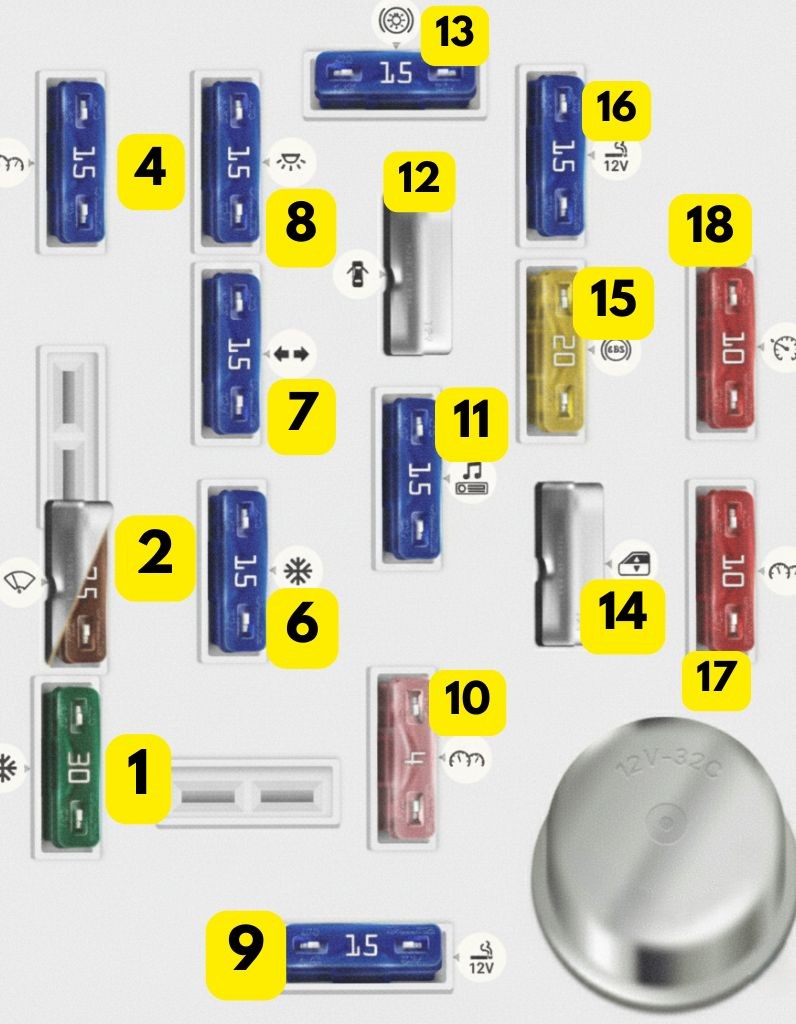

Interior Fuse Panel

1 – 1
TypeNo.Description
Fuse ATO30A1Air Conditioner/Heater
Circuit breaker ATO2Wiper/Washer
Fuse ATO7.5A2Interval Wiper/Washer
Fuse ATO15A4Exterior Lamps, Trailer Marker Lamps Relay, Warning Chime, Instrument illumination
Fuse ATO15A6Fuel Tank Selector [Diesel Only], Air Conditioner/Heater
Fuse ATO15A7Turn Lamps, Rear Window Defrost [Bronco Only]
Fuse ATO15A8Courtesy Lamps. Engine Compartment Lamp, Radio Memory, Power Mirrors, Clock Memory, Speedometer Memory, Warning Chime
Fuse ATO15A9Power Point
Fuse ATO4A10Instrument Illumination
Fuse ATO15A11Radio, Radio Display Dim
Circuit breaker ATO12Power Door Lock, Power Tailgate Window [Bronco Only], Electronic Shift Control, Power Lumbar
Fuse ATO15A13Stop and Hazard Lamps, Stop Sense For: Anti-lock Brakes, Speed Control, Electronic Engine Control
Circuit breaker ATO14Power Windows
Fuse ATO20A15Anti-lock Brakes
Fuse ATO15A16Cigar Lighter
Fuse ATO10A17Overdrive Switch. Stop Lamp Switch, Warning Chime, Diesel Warning Lamps Display, Fuel Water Switch, Low Vacuum Warning Switch, Instrument Cluster, Electronic Shift Control
Fuse ATO10A18Speedometer, Speed Control. Electronic Shift Control

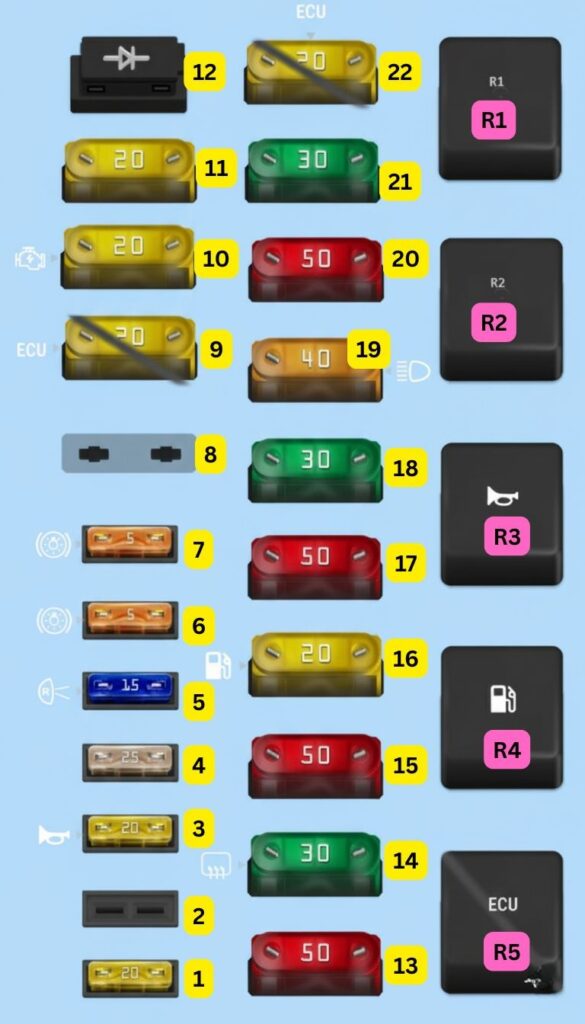

Engine Compartment Fuse Box

TypePositionDescription
Fuse ATO20A1Headlamp Flash-to-Pass, Dytime Running Light
Fuse ATO15A2Fog Lamp Relay
Fuse ATO20A3Horn, Speed Control
Fuse ATO25A4Trailer Market Lamps Relay, Trailer Backup Lamps Relay
Fuse ATO15A5Backup Lamps, Daytime Runnin Light, Trailer Battery Charge Relay, Heater Exhaust Gas Oxygen (HEGO) Sensor [Gasoline]
Fuse ATO5A6Trailer Right Stop/Turn Lamps
Fuse ATO5A7Trailer Left Stop/Turn Lamps
Fuse MAXI20A9Powertrain Control Module [Diesel]
Fuse MAXI20A9EEC/PCM Power Relay, Electronic Engine/Powertrain Control Module, Fuel Pump Relay [Gasoline]
Fuse MAXI20A10Starter Relay, Fuse (Passenger Compartment): “15”, “18”
Fuse MAXI20A11Fuel Plug Controller, Fuel Shutoff Solenoid, Engine Temperature Switch, Cold Timing Advance Solenoid, Cold Idle Solenoid
Diode ATO12TEGA Power, Electronic Egine Control (EEC) Power
Fuse MAXI50A13Fuse (Passenger Compartment): “9”, “13”
Fuse MAXI50A15Fuse (Passenger Compartment): “1”,”7″, Fuse (Engine Compartment): “5”
Fuse MAXI20A16Fuel Pump Relay [Gasoline]
Fuse MAXI50A17Alternator Charge Light, Fuse (Passenger Compartment): “6”, “11”, “14”, “17”, Fuse (Engine Compartment): “11”, “22”
Fuse MAXI30A18Trailer Battery Charge Relay
Fuse MAXI40A19Main Light Switch, Headlamps
Fuse MAXI50A20Fuse (Passenger Compartment): “4”, “8”, “12”, “16”
Fuse MAXI30A21Trailer Electronic Brake Control Unit
Fuse MAXI20A22Fuel Line Heater (Fuel Heater), Leece/Neville Alternator (Ambulance Package Generator), Electronic Transmission Control, Power COntrol Module (PCM) Power Relay, Glow Plug Relay [Diesel],
Fuse MAXI20A22TFI Ignition Module, Ignition Coil, Distributor, EEC/PCM Power Relay [Gasoline]
RelayR1Trailer Battery Charge [Diesel], WAC [4.9L (Truck Six)]
RelayR2Trailer Marker Lamps or Dual Rear Wheel Running Lights
RelayR3Horn
RelayR4Trailer Backup Lamps [Diesel], Fuel Pump [Gasoline]
RelayR5TEGA/PCM Power or Electronic Transmission Control System [Diesel]
RelayR5Electronic Engine Control/Powertrain Control Module (EEC/PCM) Power [Gasoline]

1994 Ford F-150 Fuse Box Diagram

This Ford F-150 contains three fuse boxes:

  1. Instrument Panel Fuse
  2. Enginge Compartment Fuse Box
  3. Trailer Relay Box

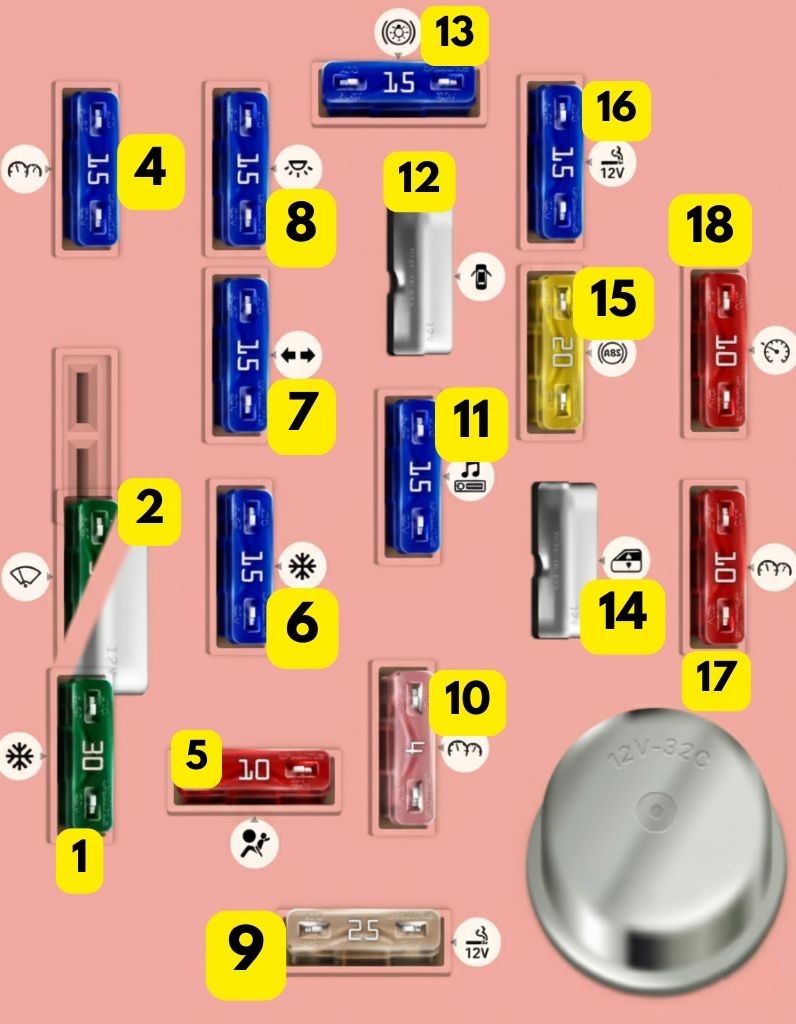

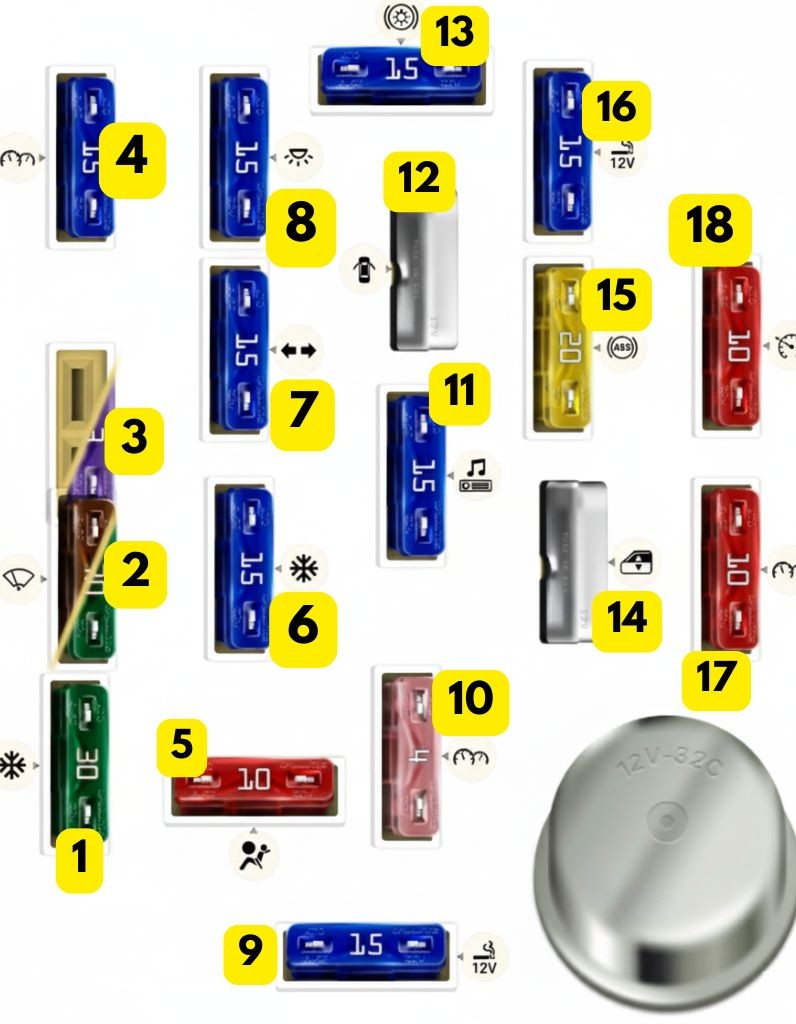

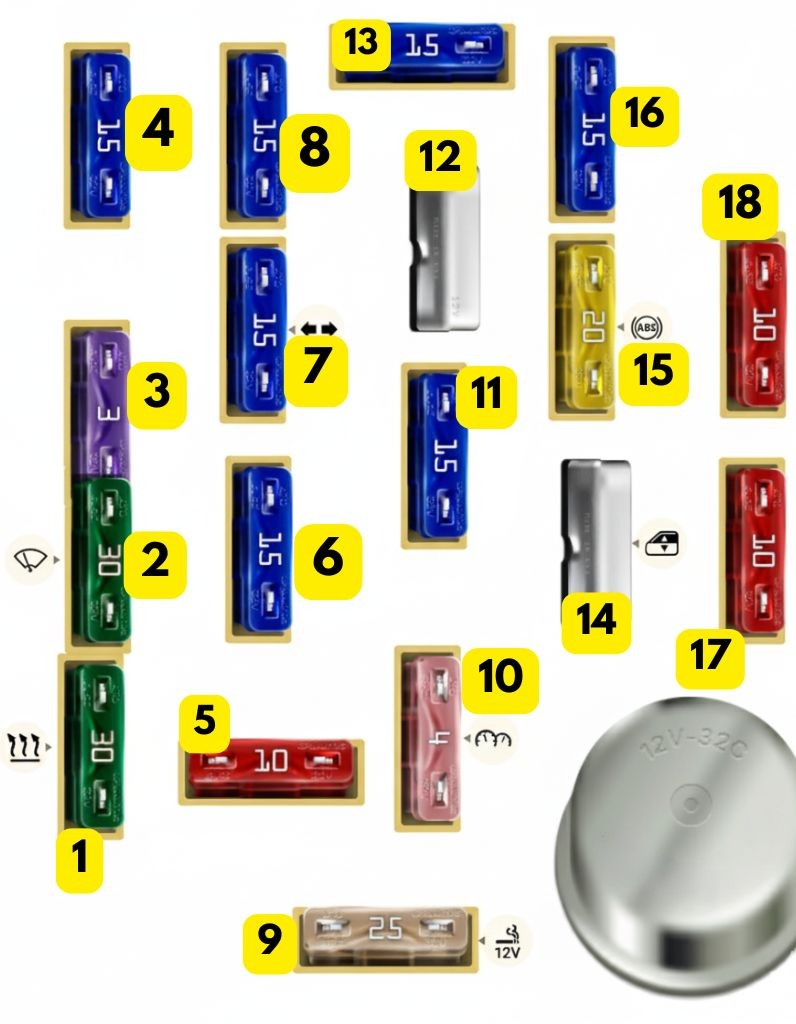

Instrument Panel Fuse Box Diagram

1 – 1
TypePositionDescription
Fuse ATO30A1Air Conditioner/Heater
Fuse ATO30A2Wiper/Washer
Circuit breaker MAXI2Interval Wiper/Washer
Fuse ATO15A4Exterior Lamps, Trailer Marker Lamps Relay, Warning Chime, Instrument illumination
Fuse ATO10A5Air Bag System
Fuse ATO15A6Fuel Tank Selector [Diesel Only], Air Conditioner/Heater
Fuse ATO15A7Turn Lamps, Rear Window Defrost [Bronco Only]
Fuse ATO15A8Courtesy Lamps. Engine Compartment Lamp, Radio Memory, Power Mirrors, Clock Memory, Speedometer Memory, Warning Chime
Fuse ATO25A9Power Point
Fuse ATO4A10Instrument Illumination
Fuse ATO15A11Radio, Radio Display Dim
Circuit breaker ATO12Power Door Lock, Power Tailgate Window [Bronco Only], Electronic Shift Control, Power Lumbar
Fuse ATO15A13Stop and Hazard Lamps, Stop Sense For: Anti-lock Brakes, Speed Control, Electronic Engine Control
Circuit breaker ATO14Power Windows
Fuse ATO20A15Anti-lock Brakes
Fuse ATO15A16Cigar Lighter
Fuse ATO10A17Overdrive Switch. Stop Lamp Switch, Warning Chime, Diesel Warning Lamps Display, Fuel Water Switch, Low Vacuum Warning Switch, Instrument Cluster, Electronic Shift Control
Fuse ATO10A18Speedometer, Speed Control. Electronic Shift Control

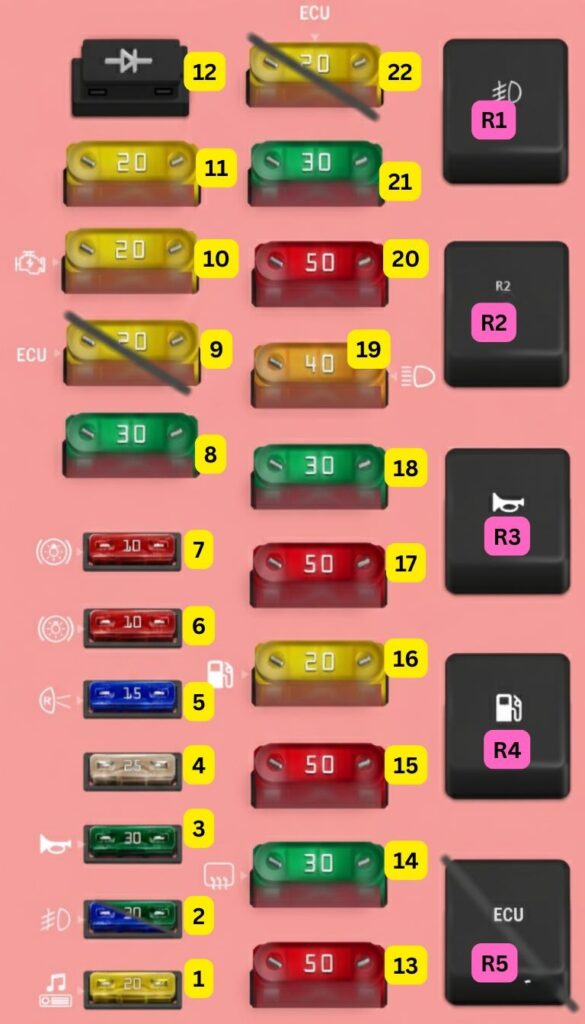

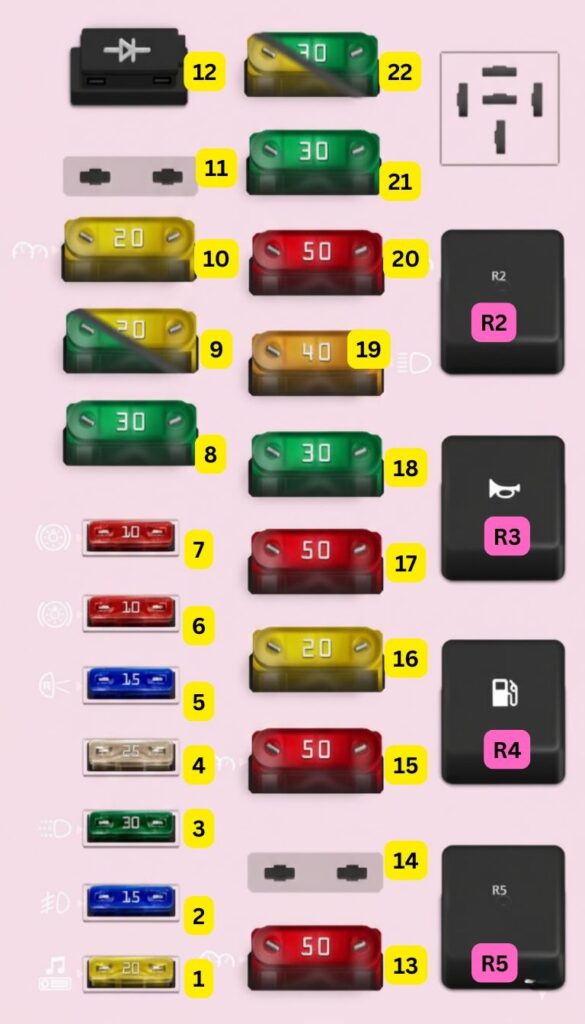

Engine Compartment Fuse Box Diagram

1 – 1
TypeNo.Description
Fuse ATO20A1Radio
Fuse ATO15A24 WABS Relay #1 [Bronco only], Fog Lamp Relay [Lightning only]
Fuse ATO30A3Horn, Headlamp Flash-to-Pass, Dytime Running Light, Speed Control
Fuse ATO25A4Trailer Market Lamps Relay, Trailer Backup Lamps Relay
Fuse ATO15A5Backup Lamps, Daytime Runnin Light, Trailer Battery Charge Relay, Heater Exhaust Gas Oxygen (HEGO) Sensor [Gasoline]
Fuse ATO10A6Trailer Right Stop/Turn Lamps
Fuse ATO10A7Trailer Left Stop/Turn Lamps
Fuse MAXI30A8EDV Power [Diesel]
Fuse MAXI20A9Powertrain Control Module [Diesel]
Fuse MAXI20A9EEC/PCM Power Relay, Electronic Engine/Powertrain Control Module, Fuel Pump Relay [Gasoline]
Fuse MAXI20A10Starter Relay, Fuse (Passenger Compartment): “15”, “18”
Fuse MAXI20A11Fuel Plug Controller, Fuel Shutoff Solenoid, Engine Temperature Switch, Cold Timing Advance Solenoid, Cold Idle Solenoid
Diode ATO12Power Control Moduole (PCM), Electronic Egine Control (EEC) Power
Fuse MAXI50A13Fuse (Passenger Compartment): “5”, “9”, “13”
Fuse MAXI30A14Rear Window Defrost [Bronco only]
Fuse MAXI50A15Fuse (Passenger Compartment): “1”,”7″, Fuse (Engine Compartment): “5”
Fuse MAXI20A16Fuel Pump Relay [Gasoline]
Fuse MAXI50A17Alternator Charge Light, Fuse (Passenger Compartment): “6”, “11”, “14”, “17”, Fuse (Engine Compartment): “22”
Fuse MAXI30A18Trailer Battery Charge Relay
Fuse MAXI40A19Main Light Switch, Headlamps
Fuse MAXI50A20Fuse (Passenger Compartment): “4”, “8”, “12”, “16”
Fuse MAXI30A21Trailer Electronic Brake Control Unit
Fuse MAXI20A22Fuel Line Heater (Fuel Heater), Leece/Neville Alternator (Ambulance Package Generator), Electronic Transmission Control, Power COntrol Module (PCM) Power Relay, Glow Plug Relay [Diesel],
Fuse MAXI20A22TFI Ignition Module, Ignition Coil, Distributor, EEC/PCM Power Relay [Gasoline]
RelayR14 WABS Relay #1 [Bronco only], Fog Lamp Relay [Lightning only]
RelayR2Trailer Marker Lamps or Dual Rear Wheel Running Lights
RelayR3Horn
RelayR4Trailer Backup Lamps, IDM Power [Direct Injection Diesel] [Diesel], Fuel Pump [Gasoline]
RelayR5TEGA/PCM Power or Electronic Transmission Control System [Diesel]
RelayR5Electronic Engine Control/Powertrain Control Module (EEC/PCM) Power [Gasoline]

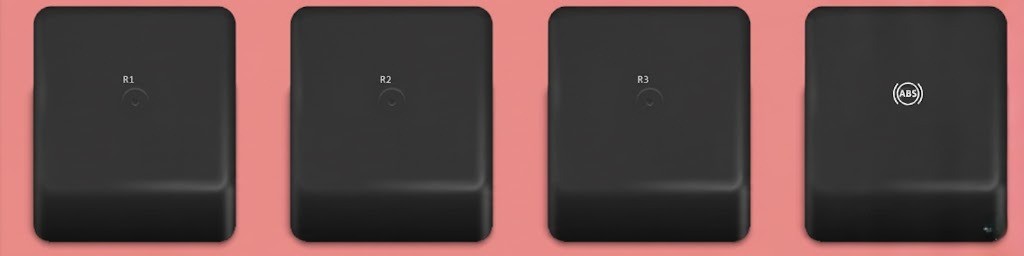

Trailer Relay Box

TypeNo.Description
RelayR1Trailer Battery Charge
RelayR2Trailer Backup Lamps
RelayR3[Bronco]: 4 WABS №1
RelayR4[Bronco]: 4 WABS Diode

1995 Ford F-150 Fuse Box Diagram

This model year holds two fuse boxes: Instrument Panel Fuse and Engine Compartment Fuse Box.

Instrument Panel Fuse Box Diagram

1 – 1
TypeNo.Description
Fuse ATO30A1Air Conditioner/Heater
Fuse ATO7.5A2Interval Wiper/Washer
Fuse ATO30A2Wiper/Washer
Fuse ATO3A3Idle position switch [Diesel]
Fuse ATO15A4Exterior Lamps, Trailer Marker Lamps Relay, Warning Chime, Instrument illumination
Fuse ATO10A5Air Bag System
Fuse ATO15A6Fuel Tank Selector [Diesel Only], Air Conditioner/Heater
Fuse ATO15A7Turn Lamps, Rear Window Defrost [Bronco Only]
Fuse ATO15A8Courtesy Lamps. Engine Compartment Lamp, Radio Memory, Power Mirrors, Clock Memory, Speedometer Memory, Warning Chime
Fuse ATO15A9Power Point
Fuse ATO4A10Instrument Illumination
Fuse ATO15A11Radio, Radio Display Dim
Circuit breaker ATO12Power Door Lock, Power Tailgate Window [Bronco Only], Electronic Shift Control, Power Lumbar
Fuse ATO15A13Stop and Hazard Lamps, Stop Sense For: Anti-lock Brakes, Speed Control, Electronic Engine Control
Circuit breaker ATO14Power Windows
Fuse ATO20A15Anti-lock Brakes
Fuse ATO15A16Cigar Lighter
Fuse ATO10A17Overdrive Switch. Stop Lamp Switch, Warning Chime, Diesel Warning Lamps Display, Fuel Water Switch, Low Vacuum Warning Switch, Instrument Cluster, Electronic Shift Control
Fuse ATO10A18Speedometer, Speed Control. Electronic Shift Control

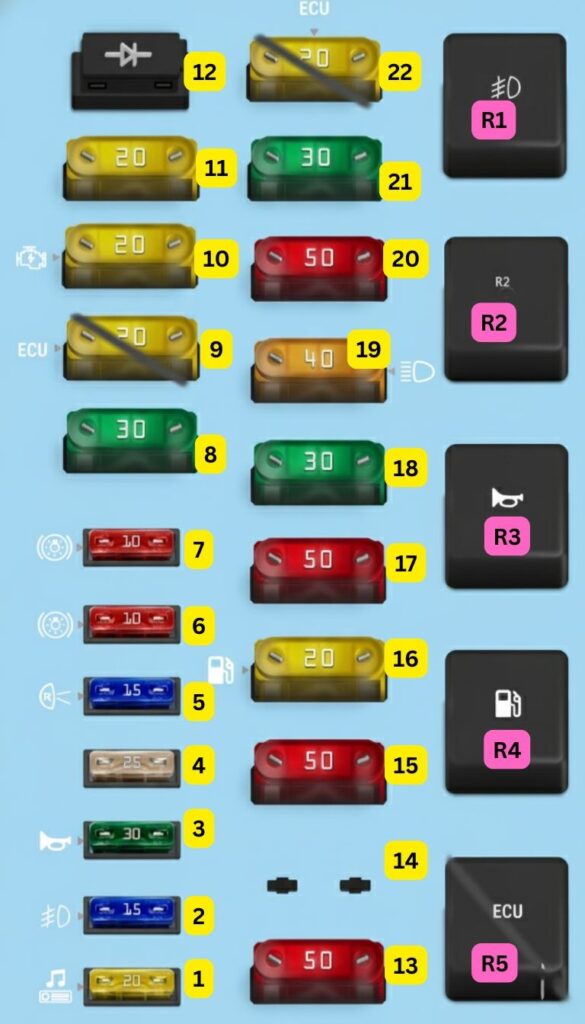

Engine Compartment Fuse Box

1 – 1
TypeNo.Description
Fuse ATO20A1Radio
Fuse ATO15A2Fog Lamp Relay
Fuse ATO30A3Horn, Headlamp Flash-to-Pass, Dytime Running Light
Fuse ATO25A4Trailer Market Lamps Relay, Trailer Backup Lamps Relay
Fuse ATO15A5Backup Lamps, Daytime Runnin Light, Trailer Battery Charge Relay, Heater Exhaust Gas Oxygen (HEGO) Sensor, Speed Control [Gasoline]
Fuse ATO10A6Trailer Right Stop/Turn Lamps
Fuse ATO10A7Trailer Left Stop/Turn Lamps
Fuse MAXI30A8EDV Power [Diesel]
Fuse MAXI20A9Powertrain Control Module [Diesel]
Fuse MAXI20A9EEC/PCM Power Relay, Electronic Engine/Powertrain Control Module, Fuel Pump Relay [Gasoline]
Fuse MAXI20A10Starter Relay, Fuse (Passenger Compartment): “15”, “18”
Fuse MAXI20A11Fuel Plug Controller, Fuel Shutoff Solenoid, Engine Temperature Switch, Cold Timing Advance Solenoid, Cold Idle Solenoid [Diesel]
Diode ATO12Power Control Moduole (PCM), Electronic Egine Control (EEC) Power
Fuse MAXI50A13Fuse (Passenger Compartment): “5”, “9”, “13”
Fuse MAXI50A15Fuse (Passenger Compartment): “1”,”7″, Fuse (Engine Compartment): “5”
Fuse MAXI20A16Fuel Pump Relay [Gasoline]
Fuse MAXI50A17Alternator Charge Light, Fuse (Passenger Compartment): “2”, “6”, “11”, “14”, Fuse (Engine Compartment): “22”
Fuse MAXI30A18Trailer Battery Charge Relay
Fuse MAXI40A19Main Light Switch, Headlamps
Fuse MAXI50A20Fuse (Passenger Compartment): “4”, “8”, “12”, “16”
Fuse MAXI30A21Trailer Electronic Brake Control Unit
Fuse MAXI20A22Fuel Line Heater (Fuel Heater), Leece/Neville Alternator (Ambulance Package Generator), Electronic Transmission Control, Power Control Module (PCM) Power Relay, Glow Plug Relay [Diesel],
Fuse MAXI20A22TFI Ignition Module, Ignition Coil, Distributor, EEC/PCM Power Relay [Gasoline]
RelayR1Trailer Battery Charge [Diesel], Fog Lamps
RelayR2Trailer Marker Lamps or Dual Rear Wheel Running Lights
RelayR3Horn
RelayR4Trailer Backup Lamps, IDM Power [Direct Injection Diesel] [Diesel], Fuel Pump [Gasoline]
RelayR5TEGA/PCM Power or Electronic Transmission Control System [Diesel]
RelayR5Electronic Engine Control/Powertrain Control Module (EEC/PCM) Power [Gasoline]

1996 Ford F-150 Fuse Box Diagram

This model year also holds two fuse boxes: Instrument Panel Fuse and Engine Compartment Fuse Box.

Instrument Panel Fuse Box Diagram

1 – 1
TypePositionDescription
Fuse ATO30A1Heater/Air conditioner blower
Fuse ATO30A2Wiper/Washer
Fuse ATO3A3Idle position switch (Diesel)
Fuse ATO15A4Exterior lamps Instrument illumination Trailer exterior lamp relay Warning buzzer/chime module
Fuse ATO10A5Air bag restraint
Fuse ATO15A6Air conditioner clutch Diesel auxiliary fuel selector Remote keyless entry
Fuse ATO15A7Turn lamps
Fuse ATO15A8Courtesy/dome/cargo lamps Electric outside mirrors Keyless entry Speedometer Sun visor mirror illumination Warning buzzer/chime module
Fuse ATO25A9Power point
Fuse ATO4A10Instrument illumination
Fuse ATO15A11Radio Radio display dimmer
Circuit breaker ATO12Electronic shift motor 4-wheel drive Power door locks Power driver seat Power lumbar
Fuse ATO15A13Anti-lock brakes Brake shift interlock Electronic engine control Speed control Stop/hazard lamps Stop sense for electronic engine control
Circuit breaker ATO14Power windows
Fuse ATO20A15Anti-lock brakes
Fuse ATO15A16Cigarette lighter Generic Scan Tool
Fuse ATO10A17Diesel indicators Electronic transmission Gauges Tachometer Warning buzzer/chime module Warning indicators
Fuse ATO10A18Air bag restraint Automatic day/night mirror Brake shift interlock Electronic shift module 4-wheel drive Speedometer Selectable RPM control (Diesel) Speed control (Diesel)

Engine Compartment Fuse Box

1 – 1
TypePositionDescription
Fuse ATO20A1Audio power
Fuse ATO15A2Fog lamps, 200 Amp alternator [Diesel ambulance only]
Fuse ATO30A3Daytime running lamps [Canada only], Headlamp flash-to-pass, Horn
Fuse ATO25A4Trailer back-up lamps, Trailer running lamps
Fuse ATO15A5Back-up lamps, Daytime running lamp module (DRL) [Canada only], Oxygen sensor heater, Trailer battery charge relay
Fuse ATO10A6Trailer right-hand stop/turn lamp
Fuse ATO10A7Trailer left-hand stop/turn lamp
Fuse MAXI30A8Injector driver module
Fuse MAXI30A9Powertrain control system [Gas]
Fuse MAXI20A9Powertrain control system [Diesel]
Fuse MAXI20A10Instrument panel fuses: 15, 18, Starter relay coil
Diode ATO12Powertrain control system relay coil
Fuse MAXI50A13Instrument panel fuses: 5, 9, 13
Fuse MAXI50A15Instrument panel fuses: 1, 7, Power distribution box: fuse 5
Fuse MAXI20A16Fuel pump feed [Gas engine]
Fuse MAXI50A17Alternator charge lamp Idle position switch (Diesel) Instrument panel fuses: 2, 6, 11, 14, 17 Power distribution box: fuse 22
Fuse MAXI30A18Trailer battery charge
Fuse MAXI40A19Headlamps
Fuse MAXI50A20Instrument panel fuses: 4, 8, 12, 16
Fuse MAXI30A21Trailer brake feed
Fuse MAXI20A22Distributor pickup, Ignition coil, Powertrain control system relay coil, Thick film integrated (TFI) module [Gas engine]
Fuse MAXI30A22Fuel line heater, Glow plug controller, Powertrain control system relay coil [Diesel engine]
RelayR2Trailer tow lamps
RelayR3Horn
RelayR4Fuel pump [Gas engine], Injector driver module (IDM relay) [Diesel]
RelayR5Powertrain control system
Tip: Some high-amperage fuses may look slightly different depending on the model year and trim. Always verify the fuse type before replacing.

Also Read: How to read a car fuse box diagram? 5 Easy Steps

Fuse Replacement Tips / Safety Precautions

  • Always disconnect the negative battery terminal before removing fuses.
  • Never replace a blown fuse with a higher amp rating — this can damage wiring or cause a fire.
  • Use a fuse puller or needle-nose pliers for safety.
  • Label replaced fuses for future reference.

Frequently Asked Questions (FAQs)

Why does the air conditioning fuse blow in the F-150?

Short Circuit – Damaged or frayed wires touching metal parts cause excessive current.
Defective Compressor – A failing or seized compressor draws too much current.
Fan Failure – Faulty or stuck condenser/cabin fans with worn bearings overload the circuit.
Faulty A/C Relay – Malfunctioning relay disrupts electrical flow and overheats the fuse.
Incorrect Fuse Rating – Using a fuse with lower amperage than Ford’s specification makes it prone to blowing.

Why does the cigarette lighter (power socket) fuse blow in the F-150?

Current Overload – Devices that draw more power than the socket’s rated capacity (e.g., air compressors, power inverters) overload the fuse.
Short Circuit – Damaged or frayed wires, or contact with metal parts, cause excessive current flow.
Faulty Adapters/Chargers – Low-quality or defective accessories can create internal shorts or overdraw current.
Incorrect Fuse Rating – Using a fuse with lower amperage than Ford’s specification makes it blow easily.

Why does the radio fuse blow in the F-150?

Short Circuit – Damaged or frayed wires, or internal shorts in the radio, cause excessive current flow.
Added Devices – Extra accessories (like amplifiers) on the same circuit increase load and overload the fuse.
Incorrect Fuse Rating – A fuse with lower amperage than Ford’s spec may blow under normal use.
Defective Radio – Internal faults in the radio can draw too much current.
Electrical System Issues – Problems like voltage fluctuations from a faulty alternator can cause fuse failure.

Why does the fuel pump fuse blow in the F-150?

Short Circuit – Damaged or exposed wiring touching the vehicle body causes excessive current flow.
Failing Fuel Pump – A worn or failing pump draws too much current and overloads the fuse.
Clogged Fuel Filter – A restricted filter forces the pump to work harder, increasing current draw.
Incorrect Fuse Rating – Using a fuse with lower amperage than Ford’s specification makes it prone to blowing.

Why does the horn fuse blow in the F-150?

Short Circuit – Damaged or exposed horn wiring (especially in the steering wheel area) can contact metal parts and cause excessive current flow.
Defective Horn – An internal fault, like a shorted coil, makes the horn draw too much current.
Faulty Horn Switch – A stuck or malfunctioning switch can cause constant current flow and blow the fuse.

+ posts

Leave a comment
